Example B4 - tilted pick side

4 levels above each other, D=1230mm

Example B4 - tilted pick side
Example B4 - tilted pick side
Example B4 - tilted pick side
Ask for a quick quote *Prices are exclusive of VAT
Article codeEXAMPLE B4


Picking side:
tilted
Width:
1390 mm in-between uprights
Depth:
1230 mm (nett storage depth 1200+ mm)
Height:
2504 mm (top of upright frame)
Number of levels
4 above each other for picking
Return level:
No
Roller conveyor in front:
No
Try before you buy:
Yes (maximal 2 bays)

Description

Durable Original Flowrack live storage rack with tilted pick side. Made out of heavy and stable profiles for decades of safe and efficient order picking. As all levels and lanes are adjustable and expandable, you get a very flexible solution.

Boxes and bins

This rack is optimised for use with a box and bin width 200 mm, 300 mm, 400 mm and 600 mm. A versatile roller carpet is also available. Also for other SKU dimensions we often have a good solution.

Free pre-assembly

You receive the Original Flowrack live storage rack pre-assembled (in main parts). You have to complete these main parts to form complete rack rows. Naturally with the help of an extensive assembly guide and an instructional film we supply.

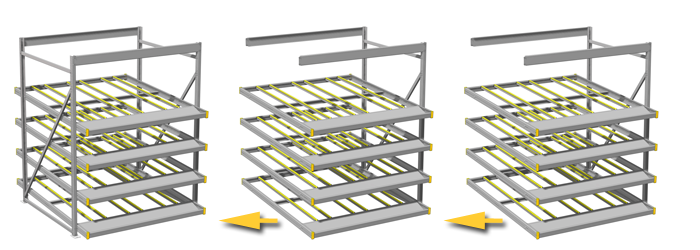

Add modular racks

Combine starting bays with extension bays to make any desired rack length. We are happy to make you a good proposal with a lay-out drawing included. We take in account the available space, possible building pillars, gangways (for order picking and replenishment) and your other requirements.
